Are you tired of maintenance cost and downtime associated with your building beams? What if we told you that structural columns and beams can be made of FRP? Have you seen fiberglass I beams?
Fiberglass I beams have become a long-term, cost-effective solution to the challenges at hand and in any environment, especially on lake shores in winter. Not only provide similar properties to traditional materials like steel, but also it does not corrode like steel or wood. What's more, they are easier to handle without the need to obtain a welding permit on site.

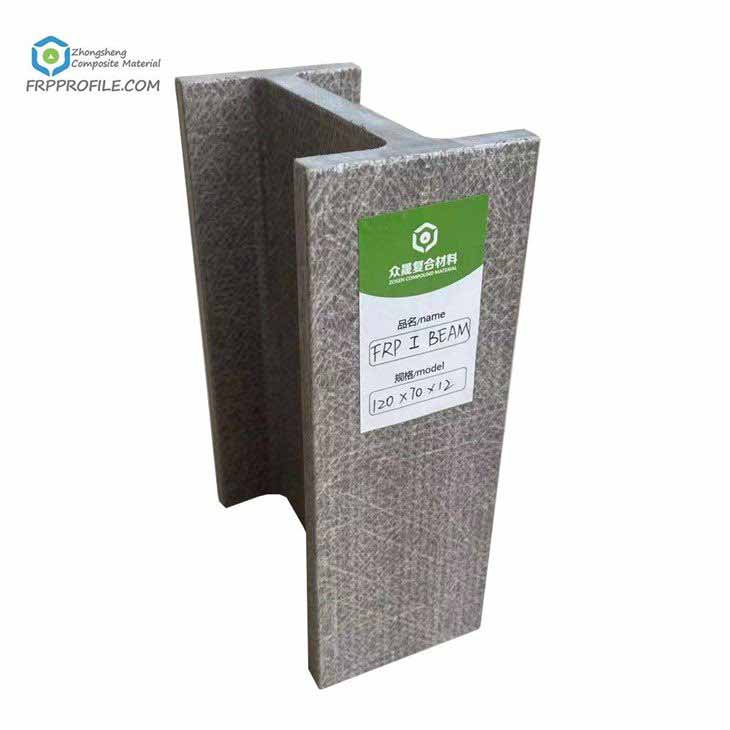

FRP I-beam is a constant cross-section structural profile formed by a continuous pultrusion process. It has many advantages. Corrosion resistance, light weight and high strength. Good dimensional stability. At the same time, it has the characteristics of insulation, no heat conduction, beautiful appearance and easy maintenance. Compared with traditional materials such as steel, aluminum, and wood, it has almost no maintenance costs.
Specification sheet in Metric Units
Diagram/Example | Size(mm)A×B×C×D | Weight(kg/m) |
| 25×15×6.4×4.0 | 0.40 |
32×15×6.4×4.0 | 0.44 | |
38×15×6.4×4.0 | 0.51 | |
76×38×6.4×6.4 | 1.69 | |
102×50×6.4×6.4 | 2.40 | |
152×76×6.4×6.4 | 3.59 | |
152×76×9.5×9.5 | 5.32 | |
203×102×9.5×9.5 | 7.20 | |
203×102×12.7×12.7 | 9.50 | |
254×127×9.5×9.5 | 9.00 | |
254×127×12.7×12.7 | 11.90 | |
305×152×9.5×9.5 | 10.74 | |
305×152×12.7×12.7 | 14.30 |
Specification sheet in Imperial Units
Diagram/Example | Size in InchesA×B×C×D | Weight(lbs/Lin.ft) |
| 1×0.6×0.25×0.16 | 0.27 |
1.26×0.6×0.25×0.16 | 0.30 | |
1.5×0.6×0.25×0.16 | 0.34 | |
3×1.5×0.25×0.25 | 1.14 | |
4×2×0.25×0.25 | 1.61 | |
6×3×0.25×0.25 | 2.41 | |
6×30×0.38×0.38 | 3.58 | |
8×4×0.38×0.38 | 4.84 | |
8×4×0.5×0.5 | 6.38 | |
10×5×0.38×0.38 | 6.05 | |
10×5×0.5×0.5 | 8.00 | |
12×6×0.38×0.38 | 7.22 | |
12×6×0.5×0.5 | 9.61 |
The basic components of FRP pultruded profiles are resin and glass fiber.There are many kinds of FRP profiles, FRP angle ,FRP tubes, FRP square tubes, FRP rectangular tubes, FRP bars, FRP I-beams. GRP/GFRP I beam can be customized according to customer requirements. Not all of sizes are shown in the specification sheet and some need to be customized. If you have other specification required, welcome to consult our customer service.
ZHongsheng FRP I beam,Fiberglass beams | |||
Tensile Strength | 300Mpa | Arc resistance | 180-190S |
Flexural Strength | 150Mpa | Comparative Tracking Index | 600CTI |
Izod Impact | 0.9J/mm | Withstand voltage | 3000V/MM |
Thermal Expansion | 28um/m.℃ | 5% H2SO4 Corrosion Resistance (25℃) | soak for 24hrs, no corrosion |
Gravity | 1.9g/cm3-2.2g/cm3 | 10% HCL Corrosion Resistance (25℃) | soak for 24hrs, no corrosion |
Water Absorption | 0.16%/24hrs@25℃ | 5% NaOH Corrosion Resistance (25℃) | soak for 24hrs, no corrosion |
1. FRP I-beam has various colors, can be integrated in various environments, and has strong designability, and users have multiple choices.
2. Lightweight and high strength. The light weight is more convenient for transportation and installation; the high strength makes the FRP I-beam can withstand great impact and is not easy to deform.
3. FRP I-beam has good insulation, high temperature resistance and rust resistance, and can be used normally even in harsh environments.
4. Low water absorption rate and can be used in humid places.
5. No need for maintenance later.
6.It provide long service life , and it has good comprehensive benefits. FRP I- beam is used for the support of FRP structures, stairs, walkways, grid members, platforms and building structure support beams, refrigerated truck floor supports, bridge frames, etc. It has high strength, anti-corrosion, insulation, resistance to aging, maintenance-free, and good bearing capacity. And other excellent characteristics
Zhongsheng produces a variety of FRP profiles to meet the needs of various industries.
Application of FRP I-beam
FRP I-beams are widely used in work platforms, equipment platforms, stair treads, trench covers, bridges, etc. in petroleum, chemical, electric power, ocean exploration, electroplating, shipbuilding, water and wastewater treatment, papermaking, winemaking, pharmaceuticals and other industries.
Q: Are you a trading or a manufactory?
A: We are one of largest FRP manufacturer in China.
Q: Can your factory provide customized services?
A: Yes. We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
Q: I am interested in your products,can I have sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!
Q: What is your payment terms?
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay
Q: What is the delivery time
A: It depends on the products and order quantity . custom order will be delivered as the negotiation with our clients.
Q: How about after-sales service?
A: Most of the products have 1 year free warranty, Lifetime technical service support.For more details, please contact us any time.
