FRP Channels

Quick Details

Place of Origin :Henan, China

Brand Name :ZHONGSHENG

Model Number :fiberglass channel

Application :Insulated ladder, supports shapes, Supports, ladder beams, platform

Surface Treatment :As customer requirement

Technique: pultruded

Dimensions: Various size

Material: Fiberglass reinforced plastic

Resin: Unsaturated polyester resin

Roving :C,  E glass fiber for choosing

Mat: Continuous strand mat, needle mat, surface vail for choosing

Length: Customized length

Color: Customized color

Density:1.8g/cm^3~2.0g/cm^3

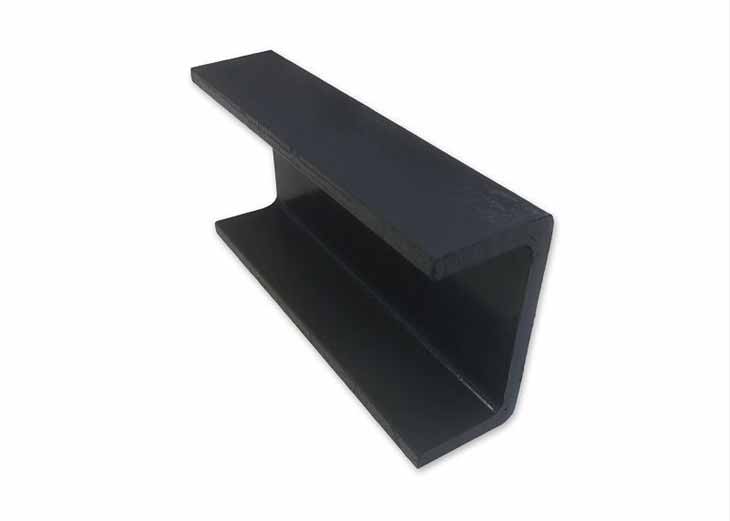

High strength fiberglass  channel profile  frp channel for stairs ladder/fiberglass structural shapes

The frp pultruded channels are a kind of fiberglass reinforced plastic products with uniform cross section. The reinforced materials include fiberglass roving, continuous fiberglass mat, stitched fiberglass mat and surface veil etc. Unsaturated polyester resin, vinyl resin, phenolic resin are the major matrix materials. The channels are formed continuously after being heated by high temperature. It is widely used as the ladder material and the structural support beam when making the work platform.

Item	Size (mm)	Weight (kg/m)
Fiberglass C channel	18*10*2.5	0.16
	20*15	0.39
	50*32*5	0.98
	55*25*3.5	0.61
	55*28*4	0.79
	63*30*3	0.65
	70*30*3.8	0.87
	70*30*4.5	1.02
	80*30*3.5	0.87
	80*25*3	0.67
	80*30*3*5	1.00
	80*30*4.5	1.10
	84*30*3.8*4.5	1.02
	88*35*5	1.41
	94.5*20*2.8	0.67
	96*20*2.9	0.71
	100*65*4.6	1.83
	110*30*4.6	1.30
	180*50*6	2.95
	180*50*8	4.05
	200*100*4.6	3.35
	210*30*4.6	2.26
	300*150*5.6	6.30
	312*50*5.6	4.30
	810*20*5	8.38

Our company produces a variety of FRP profiles to meet the needs of various industries.
GRP/GFRP   chanenel can be customized according to customer requirements. Not all of sizes are shown in the specification sheet and some need to be customized. If you have other specification required, welcome to consult our customer service.

ZHongsheng  FRP channel
Tensile Strength	300Mpa	Arc resistance	180-190S
Flexural Strength	150Mpa	Comparative Tracking Index	600CTI
Izod Impact	0.9J/mm	Withstand voltage	3000V/MM
Thermal Expansion	28um/m.℃	5% H2SO4 Corrosion Resistance (25℃)	soak for 24hrs, no corrosion
Gravity	1.9g/cm3-2.2g/cm3	10% HCL Corrosion Resistance (25℃)	soak for 24hrs, no corrosion
Water Absorption	0.16%/24hrs@25℃	5% NaOH Corrosion Resistance (25℃)	soak for 24hrs, no corrosion

· Light Weight - Less Density - 20% Of Steel; 70% Of Aluminum	· High Strength And Insulating Values
· High Corrosion Resistance	· UV Resistant Inhibited
· Variety Of Colors For Choice	· Superior Dimensional Stability
· Wide Temperature Range Use	· Consistent Cross Section
· Excellent Structural Properties	· Environmentally Safe
· Non-Conductive Thermally And Electrically	· Dimensional Stability
· Non-Magnetic Electromagnetic	· Ease Of Fabrication & Installation

FRP Profiles Applications

· Electrical fields: cable bridge, FRP ladder beam , stents, insulation ladder, the transformer block bar, the motor wedge, lampposts,  the third rail circuit board, fiber optic cable core materials.

· Chemical & anti-corrosion areas: FRP sucker rod, cooling tower support, offshore oil production equipment channels,  walking grille, staircase handrails and stents, chemical corrosion environment of the structural support.

· Entertainment areas: fishing rods, rods, umbrellas skeleton, flagpoles, lampposts, railings, handrails, stairs, radio  antennas, marinas and so on.

· Public transport areas: barriers on both sides of the highway barrier, road signs, pedestrian bridge, sound insulation walls refrigerated trucks and other components.

· Agricultural areas: livestock rings, poultry houses with wall fence, greenhouse structure, support components, rattan shed,    water trough etc.

Production Scene

Q: Are you a trading or a manufactory?

A: We are one of largest FRP manufacturer in China.

Q: Can your factory provide customized services?

A: Yes. We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.

Q: I am interested in your products,can I have sample for free?

A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. Welcome to send your inquiry for FREE samples!

Q: What is your payment terms?

A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay

Q: What is the delivery time

A: It depends on the products and order quantity . custom order  will be delivered as the negotiation with our clients.

Q: How about after-sales service?

A: Most of the products have 1 year free warranty, Lifetime technical service support.For more details, please contact us any time.
